The Eiffel-type wind tunnel is an open type without flow recirculation. In this design, the drive fan is located downstream, at the end of the wind tunnel.
The air is drawn in from the surrounding, still atmosphere via an inlet nozzle. It then flows through a calming chamber with a flow straightener (or honeycomb) and damping screens into the wind tunnel nozzle. In the nozzle, the air is accelerated to the respective air speed (or measuring speed at the outlet of the nozzle). This is followed by a closed measuring section / measuring chamber. This is indispensable due to the negative pressure (relative to the environment) caused by the fan arrangement. The air then flows into the fan via a collector and diffusers. From here it flows back into the atmosphere.
The main advantages of an Eiffel-type wind tunnel can be summarised as follows:
- no swirl from the fan
- no turbulence due to deflection of the flow
- calmed air is drawn in (note location!)
The temperature in the measuring section largely corresponds to that in the room or the surrounding air.
All wind tunnels are designed and manufactured by us according to the requirements of the respective customer.

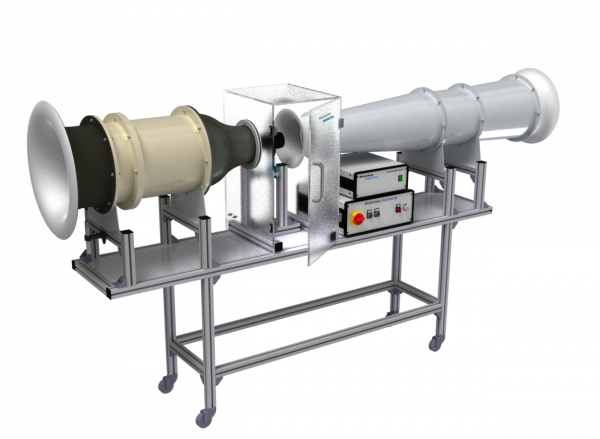

WT 818035-E
Technical Data
| Diameter of jet outlet | 180 mm |
| Max flow velocity | 0.3 to 35 m/s |
| Dimensions (width, height, length) | 620 x 1,700 x 3,100 mm |
WT 818040-E
Technical Data
| Diameter of jet outlet | 180 mm |
| Max flow velocity | 0.3 to 35 m/s |
| Dimensions (width, height, length) | 620 x 1,700 x 3,100 mm |

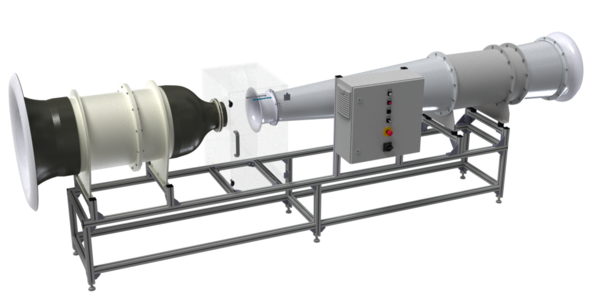

WK 818065-E
Technical Data
| Diameter of jet outlet | 180 mm |
| Max flow velocity | 0.3 to 65 m/s |
| Dimensions (width, height, length) | 900 x 1,510 x 4,450 mm |

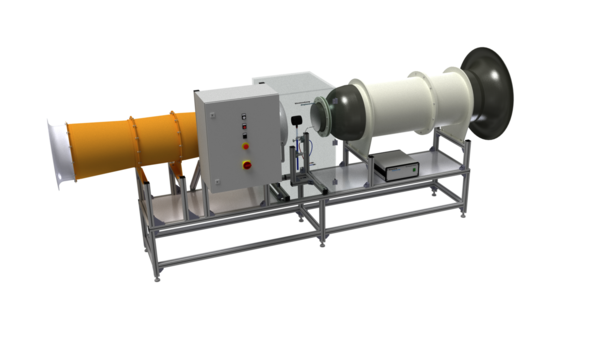

WT 825540-E
Technical Data
| Diameter of jet outlet | 255 mm |
| Max flow velocity | 0.3 to 40 m/s |
| Dimensions (width, height, length) | 900 x 1,510 x 4,450 mm |

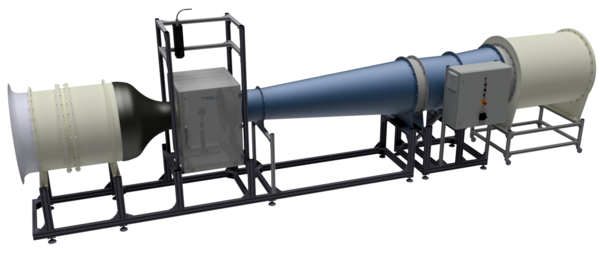

WT 832050-E
Technical Data
| Diameter of jet outlet | 320 mm |
| Max flow velocity | 0.1 to 50 m/s |
| Dimensions (width, height, length) | 1,500 x 1,500 x 4,450 mm |

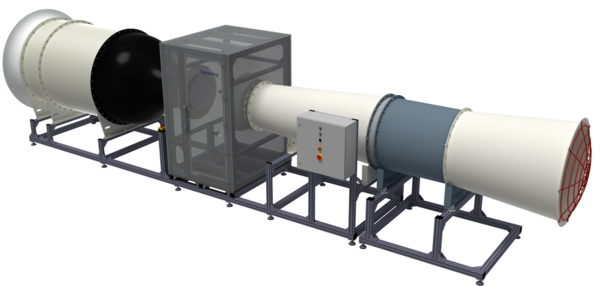

WT 860040-E
Technical Data
| Diameter of jet outlet | 600 mm |
| Max flow velocity | 0.5 to 40 m/s |
| Dimensions (width, height, length) | 2.110 x 2,490 x 10,180 mm |

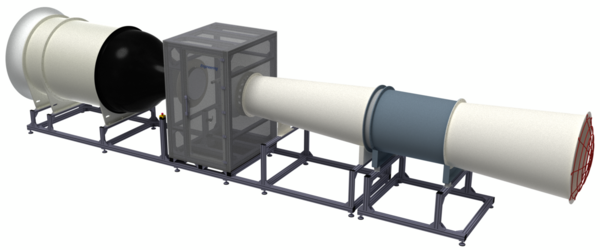

WT 860070-E
Technical Data
| Diameter of jet outlet | 600 mm |
| Max flow velocity | 0.5 to 70 m/s |
| Dimensions (width, height, length) | 1,970 x 2,490 x 11,050 mm |

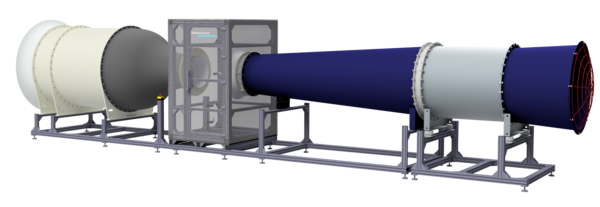

WT 860075-E
Technical Data
| Diameter of jet outlet | 600 mm |
| Max flow velocity | 0.5 to 75 m/s |
| Dimensions (width, height, length) | 1.970 x 2,490 x 10,900 mm |

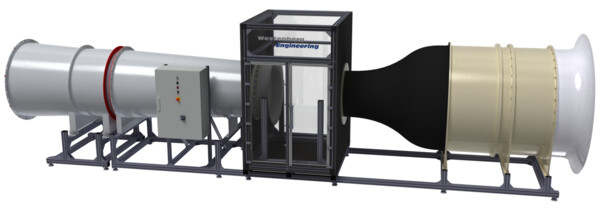

WT 880050-E
Technical Data
| Diameter of jet outlet | 800 mm |
| Max flow velocity | 0.3 to 50 m/s |
| Dimensions (width, height, length) | 2,360 x 2,600 x 11,000 mm |

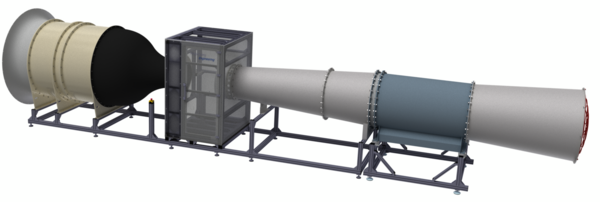

WT 8600100-E
Technical Data
| Diameter of jet outlet | 600 mm |
| Max flow velocity | 0.5 to 100 m/s |
| Dimensions (width, height, length) | 2,340 x 2,655 x 12,624 mm |

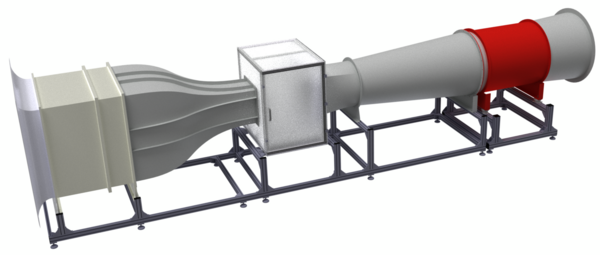

WK 500x50065-E
Technical Data
| Jet outlet | 500 x 500 mm |
| Max flow velocity | 0.3 to 65 m/s |
| Dimensions (width, height, length) | 1,775 x 2,200 x 8,900 mm |

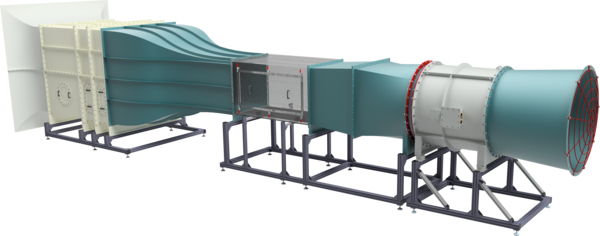

WT 81100x110040-E
Technical Data
| Jet outlet | 1,100 x 1,100 mm |
| Max flow velocity | 0.5 to 40 m/s |
| Dimensions (width, height, length) | 3,300 x 3,500 x 12,000 mm |
